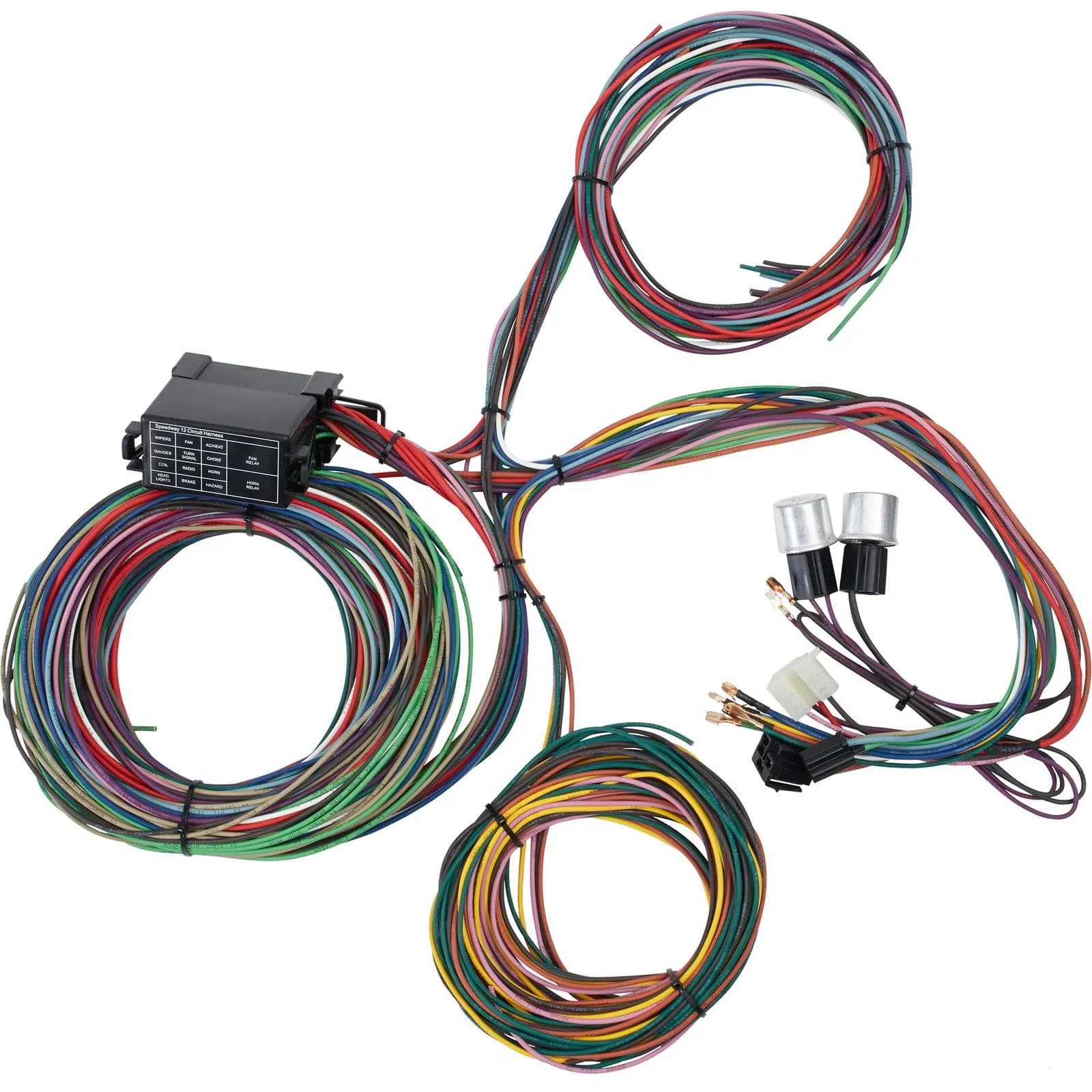

- Universal design for nearly any 12-volt vehicle and engine/transmission combination
- 12 individually fused circuits, conveniently bundled into four "quick start" sections
- Constructed of GXL polyethylene insulated automotive-grade copper wiring
- Each wire strand is color-coded and labeled every six inches for easy identification
- Plug-and-play with factory or aftermarket 1968-1996 GM tilt steering columns

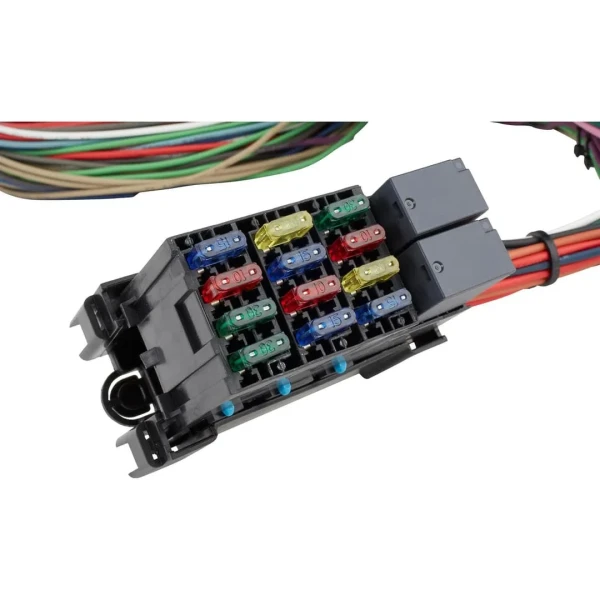

- Compact 3.7" x 1.9" x 3.8" two-piece fuse block for easy service
- Appropriate wire diameter and fuse rating for each circuit’s load
- Uses easy to find modern blade-style APM/ATM spec "mini" blade fuses
- Tail light leads are 12 feet in length and work with most vehicles
- Complete wiring harness kit weighs less than 7.5 lbs. installed
Warning: Use caution when mounting these panels. Improper installation can cause shorts or electrical damage. Ensure hardware is the correct length and the panel is securely mounted. Installation Tip: No mounting bracket is provided, so a custom mounting method is required. Make sure any hardware used does not contact internal terminals or wiring. The back of the fuse block can be removed from the base unit (see photos above). By detaching the back unit, you can position and secure it as needed for installation, then reattach the fuse block assembly to the base unit.
Product Code: SG3108
